Proud to announce that we have partnered with Cetetherm to help them offer best-of-class service to their customers.

We are proud to announce that we have partnered with Cetetherm to help them offer best-of-class service to their customers. As an HIU (heat interface unit) supplier, the customers of Cetetherm are often asking to assist in the pipe sizing of their project.

Using the Cetetherm Pipe Sizing, powered by Hysopt helps Cetetherm to provide more accurate calculations, compliant with the relevant industry standards. A detailed pipe sizing cuts oversizing and thereby contributes to more efficient heat networks.

Cetetherm_Hysopt

Features

System Check

The physical calculation model ensures the software ‘knows’ what has been designed and can trace hydraulic concept faults and make them visible to the designer.

Diversity for Domestic Hot Water

Hysopt supports diversity calculation based on the Danish DS439, the Swedish DHA F:101, the German DIN 1988-300 and the French COSTIC standard.

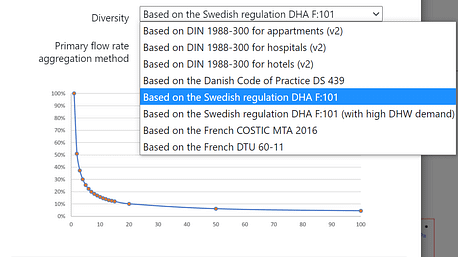

Diversity calculation in the Hysopt Software

Diversity for Central Heating

Cetetherm Pipe Sizing also supports diversity calculation for central heating. This diversity curve can be tweaked to meet the required standard.

Heat Exchanger Calculation

The Cetetherm Pipe Sizing calculates the exact return temperature and resulting flow rate through heat exchangers for any given design condition, using the heat transfer coefficient of the heat exchanger. Cetetherm can use these detailed calculations to show the supremacy of their products.

2 identical HIU’s for different design conditions

Advanced Aggregation

To avoid oversizing of pipework, Hysopt will aggregate all the heat loads in the network correctly, based on the chosen diversity standards. In each pipe, the supply for domestic hot water, for heating prioritised by DHW (e.g. when HIU’s are applied), and the supply for heating not prioritised by DHW are aggregated and weighted based on diversity factors.

As a result, overestimation of the heat loads and the flow rates are prevented. Both Cetetherm and Hysopt stress out the importance of calculating the return temperatures and flow rates.

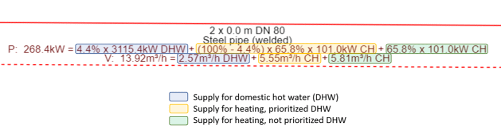

Flow rate calculation in the Hysopt software
Schematic from Cetetherm Pipe Sizing, powered by Hysopt

What Cetetherm customers can expect

The Cetetherm Pipe Sizing can deliver the following outputs:

  • P&ID schematic (risers and laterals), detailing:
    • Peak loads
    • Temperature regimes
    • Flow rates
    • Pipe sizes and lengths
  • Export of component list with:
    • Pipe schedule
    • HIU schedule

This is a great kick-start for developing an efficient heat network.

Product implementation in the Hysopt software

Product Marketing Cooperation

Hysopt product marketing cooperation (PMC) involves the integration of manufacturer specific components into the Hysopt software. Integration of manufacturer specific components allows any Hysopt user to design and simulate systems using the correct physical parameters of the manufacturers components.

HVAC digital twin software

Dynamic simulation of a heating installation

The “Cetetherm Pipe Sizing, powered by Hysopt” is developed as a light-weight version of the Hysopt software. The Hysopt software is a design and simulation software which builds a digital twin of an existing or future installation. Unlike outdated and static design methods, the Hysopt software designs with the greatest precision. All components in the heating installation are automatically sized and the commissioning values are being calculated.
